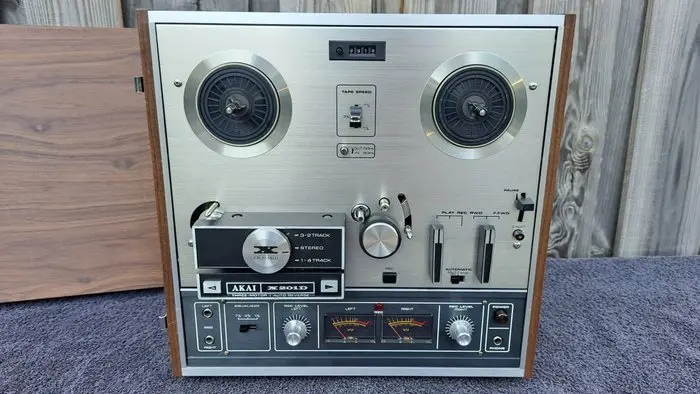

Akai - X-201D / 3-Motor

ice Akai X-201D tape recorder. Complete with lid. Fully functional, it rewinds, plays, records, and auto-reverse and auto-stop also work. The lid is included. See the photos for the condition of the lot. Please examine the photos carefully before bidding. They show the condition of the item. With conventional recorders, the signal and the bias are connected to the same recording head. Therefore the recorded frequencies, especially high-frequency signals, are often attenuated or erased by the effect of the bias field. With the exclusive Akai Cross-Field Head, however, the signal and bias heads are mounted separately opposite each other, with their centering points slightly offset. Because the recorded signal remains completely unaffected by the bias field, tape can be recorded over the full frequency spectrum with maximum fidelity, even at low tape speeds. The two reels are NOT included; they are shown only to illustrate operation. Specifications: Tracks: 4-track, 2-channel, stereo/mono system Heads: 1 x record/play, 1 x erase, 1 x bias Motor: 2 x capstan drive, 1 x take-up Reel size: up to 7 inch reels Tape speeds: 1 7/8, 3 3/4, 7 1/2 ips Wow and flutter: 0.08% (7 1/2 ips) Frequency response: 30 Hz to 26 kHz (7 1/2 ips) Signal-to-noise ratio: 50 dB Total harmonic distortion: 3% Crosstalk: 45 dB Input: 50 mV (line), 5 mV (DIN), 0.5 mV (microphone) Output: 1.23 V (line), 0.4 V (DIN) Semiconductors: 16 x transistors, 17 x diodes Dimensions: 358 x 358 x 227 mm Weight: 17 kg Carefully packed and shipped.

Stima:€400
